LY-D02RGB 1W-3W full-color animation laser light

Model:LY-RGB1W-D1
Type:Laser lights
Light Source:Laser
Input Voltage(V):100-240V
Rate Power:60W
Laser Power:1w 2w 3w
Scanner:30Kpps
Beam angle:25 degree
DMX Channels.:12 CHS
Weight:4KG

Product Description

DescriptionModelConfigurationScanner
1W full-color animation laser light
LY-RGB1W-D1Red :400mw/638nm
Green:100mw/520nm
Blue:500nm/447nm
Scanner:20kpps
1.5W full-color animation laser lightLY-RGB01-2

Red:300mw/638nm

Green:300mw/520nm

Blue:800nm/447nm

Scanner:20kpps

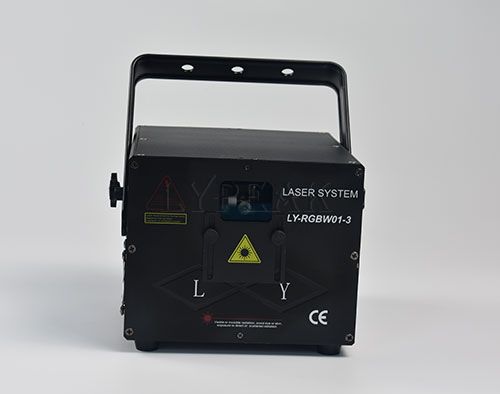

2W RGB full-color animation laser lightLY-RGBW01-3Red:500mw/638nm
Green:300mw/520nm
Blue:1200nm/447nm
Scanner 30KPPS
Single green G2W SD animation laser lightLY-SDG002Green:2000mw/520nmScanner 30KPPS


●Technical parameters:
Rated voltage: AC110-230V ±10%
Rated frequency: 50 ~ 60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System: Galvo Scanning 30KPPS
Scanning angle: plus or minus 20 degrees
Control mode: DMX512, voice-activated, self-propelled, SD-play operation mode, master-slave, computer ILDA interface
Control channel: 10/21 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. The
Cooling system: fan forced cooling

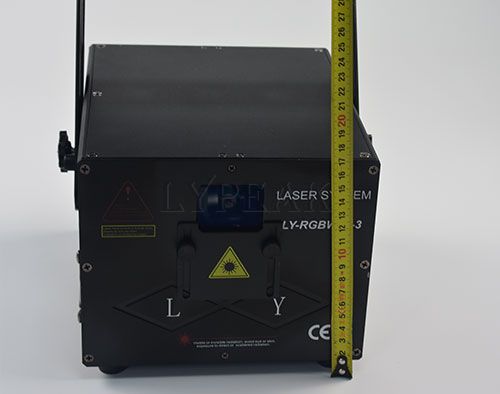

Light body size: 26*22*20 /CM
Carton: One loaded one: 29X25X23CM Net weight: 4KG Gross weight: 5KG
One loaded two: 53X31X26CM gross weight: 11KG

Product Video

Product Effect

LY-D02RGB 1W-3W full-color animation laser light
