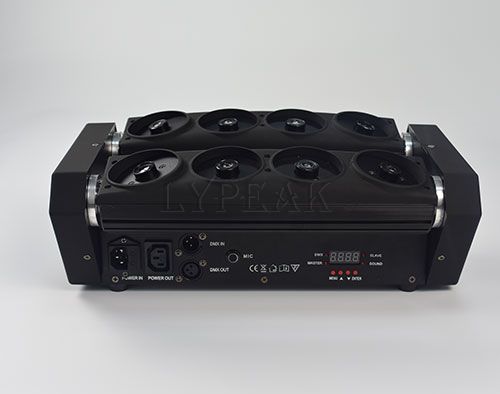

LY-YTM08 Moving Head 8-Eye Spider Beam Laser Light

Model:LY-YTM08-2
Input Voltage(V):100-240V
Power:120W
Color:RGB
IP Rate:IP20
DMX Channels.:6/12 CHS
Weight:7.6KG

Product Description

LY-YTM08-2

DescriptionModelConfigurationRated voltage: AC110V~AC230V ±10%
Rated frequency: 50Hz~60Hz
Rated power: 140 W
Laser Pattern: Various Thick Beam Effect Patterns
Laser modulation signal: TTL modulation signal
Control mode: DMX-512 signal control, self-propelled mode, sound control mode,
Control channel: 7/13 CH 512 channels
Scanning System: Stepper Motor
Scanning angle: ±25 degrees
Level: 345 degrees, vertical: 60-120 degrees
Cooling system: fan forced cooling system
Working environment: indoor
Light body size: 40*24*24 /CM
1IN 1: 47X31X31CM
N.W: 9KG G.W: 10KG
1 IN 1: 64.5X49X33.5CM
G. w : 21KG
Moving Head 8-Eye  Spider Beam Laser  LightLY-MRGB8-2R:500MW/638NM X2
G:80MW/520NM  X4
B:500MW/447NM X2
Moving Head 8-Eye  Spider Beam Laser  LightLY-M8RGB-2R:150MW/638NM X2
G:80MW/520NM  X4
B:150MW/447NM X2
Moving Head 8-Eye  Spider Beam Laser  LightLY-M80G8-2G:80MW/520NM X8



LY-YTM08-2A


DescriptionModelConfigurationRated voltage: AC110V~AC230V ±10%
Rated frequency: 50Hz~60Hz
Rated power: 120 W
Laser Pattern: Various Thick Beam Effect Patterns
Laser modulation signal: TTL modulation signal
Control mode: DMX-512 signal control, self-propelled mode, sound control mode, master-slave mode
Control channel: 6/12 CH 512 channels
Scanning System: Stepper Motor
Scanning angle: ±25 degrees
Cooling system: fan forced cooling system
Working environment: indoor
Light size: 39*22*16CM  Carton: 1in1: 47X31X21.5CM N.W: 5.5KG G. W: 7KG
1 in 2: 49X33X46.5 CM G.W: 15KG
Moving Head 8-Eye  Spider Beam Laser  Light
LY-M9RGB-2G:80MW/520NM X4
R:150MW/638NM X2
B:150MW/447NM  X2

LY-M9-2






Product Video

Product Effect

LY-YTM08 Moving Head 8-Eye  Spider Beam Laser  Light
