100W outdoor laser light landmarkprojection

Product Description


LY-X100W


Laser configuration: RGB100W:(R30W+G30W+B40W)

Voltage: AC110-230V ±10%

Rated frequency: 5060Hz

Power:2000W

Laser color: RGB full color

Laser power: RGB100W

Laser light source:

Green   G 30W:525NM

Red     R 30W:638NM

Blue    B 40W:450NM

Modulation signal: TTL modulation (analog modulation)

Modulation voltage100KHz

Input signal ± 5v; linear distortion < 2%

Beam diameter and divergence: 14mm :<2mard

Scanning system: Galvanometer scanning DT50KPPS

Scan angle: plus or minus 25 degrees

Control mode: DMX-512, voice control, self-propelled,

master-slave mode, Art-Net RJ45,ILDA 25P

Laser software: (Pangolin QSFB3/FB4 or Fire Phoenix.)

Control channel: 16 DMX512 channels

Use environment: indoor and outdoor

Applicable places: large bars, performances, softstop shows, light shows, laser lighting in scenic spots, outdoor laser landmarks, etc.

Working temperature: -20℃-50℃

Cooling system:Laser whit TEC cooling,fan forced cooling

Waterproof gradeIP65

Life: 10000 hour

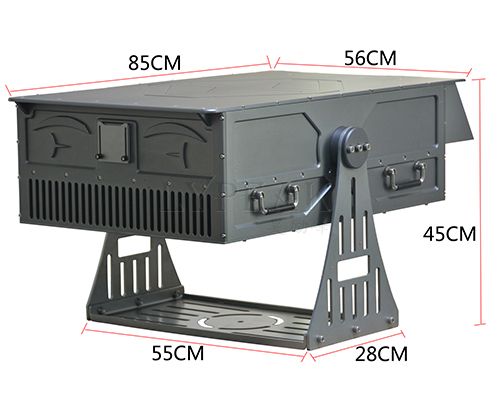

Light body size: 87*58*45cm

Light weight:   80KG


1 in 1 packing size:  90.5* 69.5*67.5cm     GW110 KG


Product Video

Product Effect
