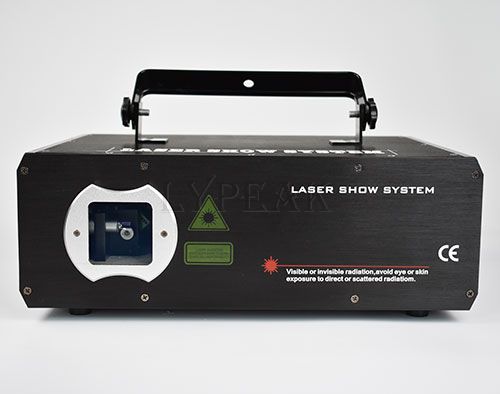

LY-D03RGB SD2W Animation full colour laser

Model:LY-RGBSD02
Type:Laser lights
Light Source:Laser
Input Voltage(V):100-240V
Rate Power:60W
Laser Power:2W
Scanner:25Kpps
DMX Channels.:12CHS
Weight:7.6KG

Product Description

DescriptionModelConfigurationScanner
SD RGB 2W full color  animation laser lightLY-RGBSD02R:500mw/638nm
G:500mw/520nm
B:1000nm/447nm
Scanner:20kpps
SD Green 1.5W  animation laser light
LY-SDG02AG1500mw/520nmScanner:20kpps


●Technical parameters:
Rated voltage: AC110-230V ±10%
Rated frequency: 50 ~ 60Hz

Laser color: RGB full color / Green

Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System:  Scanner:20KPPS
Scanning angle: plus or minus 20 degrees
Control mode: DMX512, voice-activated, self-propelled, SD-play operation mode, master-slave, computer ILDA interface
Control channel: 10/21 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: Fan forced cooling

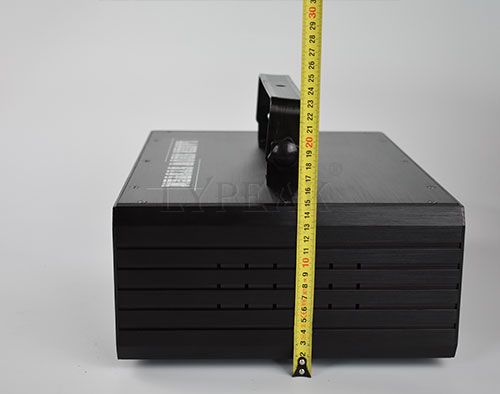

Light body size: 31*26*20/ CM
Carton: 1in 1 : 35X28X20CM  NW 2.5KG  GW: 3KG
1IN 4: 59X37X43CM

Product Video

Product Effect

LY-D03RGB SD2W Animation full colour laserLY-D03RGB SD2W Animation full colour laser
