Product Description
| Description | Model | Configuration | Scanner |

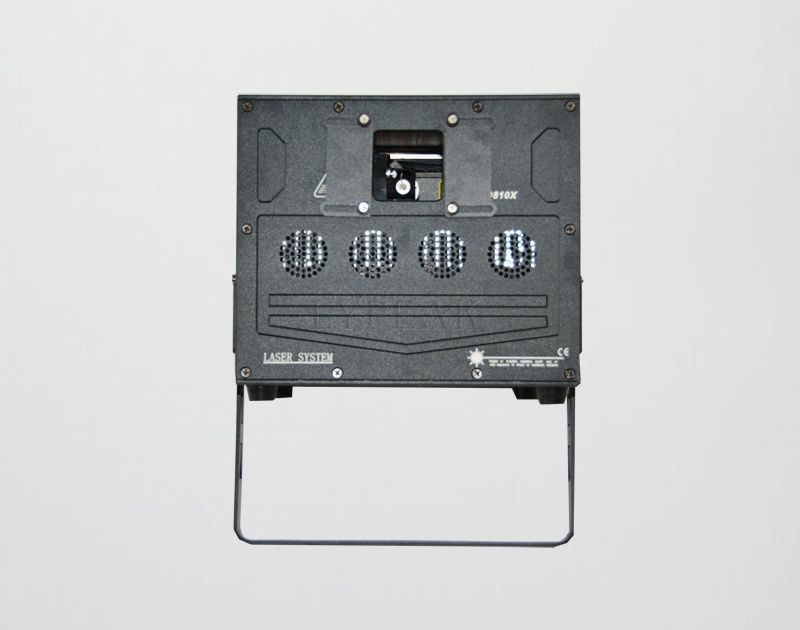

| RGB 8W full colour Animation laser light | LY-BM0810X | Red::2000mw/638nm Green:2000mw/520nm Blue:4000nm/447nm | Scanner 25KPPS |
| RGB 10W full colour Animation laser light | LY-BM0810X1 | Red::3W/635nm Green:3W/520nm Blue:4W/447nm | Scanner 25KPPS |
Rated voltage: ac110-230v ± 10%
Rated frequency: 50-60Hz
Rated power: 600W
Laser color: RGB full color / Single colour
Laser source: G: 520nm R: 638nm B: 450nm
Laser pattern: 128 laser animation patterns / 512 pictures can be saved in SD
Modulation signal: TTL modulation (analog modulation)
Scanning system: galvanometer scanning 40kpps
Scanning angle: plus or minus 25 degrees
Control mode: DMX512, voice control, self-propelled, computer ILDA interface
Control channel: 13 / 25 DMX512 channels
Function: it can be controlled by laser software such as qsfb3 / FB4 or Phoenix.
The control of ILDA adopts automatic electronic transfer switch, which has error protection of scanning system and laser light closing protection.
The machine has its own pattern size and reverse adjustment, manual laser electronic lock switch. Cooling system: forced cooling of fan
