| Model: | LY-RGBW020 |
| Light Source: | Laser |
| Input Voltage(V): | 100-240V |
| Rate Power: | 200W |
| Scanner: | 40Kpps |
| Beam angle: | 25 degree |
| DMX Channels.: | 12CHS |
| Weight: | 50KG |
Product Description
| Description | Model | Configuration | Scanner |

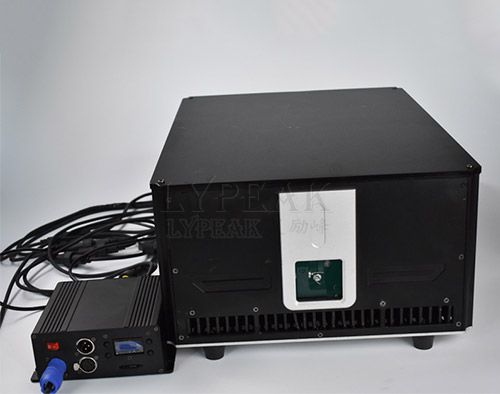

| RGB20W full color animation laser light | LY-RGBW020 | Red:5000mw/638nm Green:6000mw/520nm Blue:10000nm/447nm | Scanner: 40KPPS |
| Ourdoor(Green) 20W full colour Animation laser | LY-SDG020 | Green:20w/532nm | Scanner: 40KPPS |
| Ourdoor(Green) 30W full colour Animation laser | LY-SDG030 | Green:30w/532nm | Scanner :40KPPS |
● Technical parameters:
Rated voltage: AC110-230V ±10%
Rated frequency: 50～60Hz
Rated power: 800W
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects) SD card with 255 patterns
Modulation signal: TTL modulation (analog modulation)
Scanning System: 40KPPS
Scanning angle: positive and negative 25 degrees
Control mode: DMX512, voice-activated, self-propelled, SD-play operation mode, master-slave, computer ILDA interface
Control channel: 10/21 (optional) DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling
Lamp size: 62*50*34/ CM
Package Size: One Pack One Flight Case: 65*54*42CM
Net weight: 35KG Gross weight: 50 KG
Product Video
Product Effect
