| Model: | LY-BM0305 |
| Type: | Laser lights |
| Input Voltage(V): | 100-240V |
| Rate Power: | 150W |
| Scanner: | 30Kpps-40kpps |
| scanner angle: | |
| DMX Channels.: | 12 CHS |
| Weight: | 7.5KG |
Product Description
| Description | Model | Configuration | Scanner |
| 5W RGB Full colour Animatiom laser light | LY-BM0305 | R:1000mw/638nm G:1000mw/520nm B:3000nm/447nm | Scanner:30kpps |
| 3W Green Animatiom laser light | LY-SDG003 | G3000mw/520nm | Scanner:30kpps |
Rated voltage: AC110-220V
Rated frequency: 50-60Hz
Laser pattern: 128 laser animated patterns (built-in: animated patterns and geometric lines 2 sets of pattern effects)
Modulation signal: TTL modulation (analog modulation)
Laser :Red: 638nm Green: 520nm Blue: 447nm
Scanning System: scanner 30KPPS
Scanning angle: plus or minus 20 degrees
Control mode: DMX512, voice control, self-propelled, computer ILDA, SD
Control channel: 12 DMX512 channels
Function: Can be controlled by laser software such as Pangolin QSFB3/FB4 or Fire Phoenix. The ilda control uses an automatic electronic transfer switch with scanning system error protection and laser closed-light protection. The machine itself comes with a pattern size and inversion adjustment, manual laser electronic lock switch. Cooling system: fan forced cooling

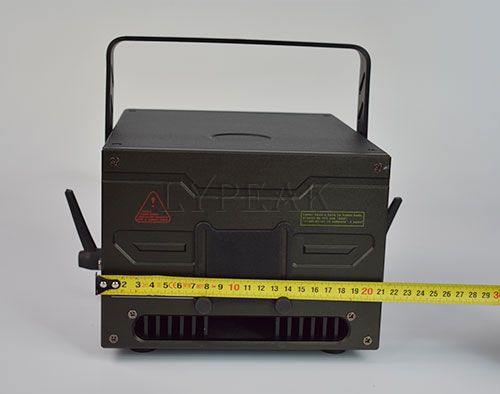

Light size: 33*30*24 /CM
Carton: 1 in 1: 36X31X28CM Net weight: 7.5KG G W: 8.5KG
